Description

SPECIFICATIONS

AC Current: 200uA-10A

AC Voltage: 200mV-750V

ANENG Model: sz305

Battery Included: No

Brand Name: ANENG

Certification: CE

Choice: yes

DC Current: 200uA-10A

DC Voltage: 200mV-1000V

DIY Supplies: Electrical

Dimensions: 188x91x38 mm

Display Type: Digital Display

High-concerned chemical: None

Measuring Capacitance Range: 20mF

Measuring Inductance Range: ANENG Digital Multimeter

Measuring Resistance Range: 200 MOhm

Model Number: ANENG SZ305 Multimeter

Operating Mode: Manual Range

Operating Temperature: 0 – 40 ℃

Origin: Mainland China

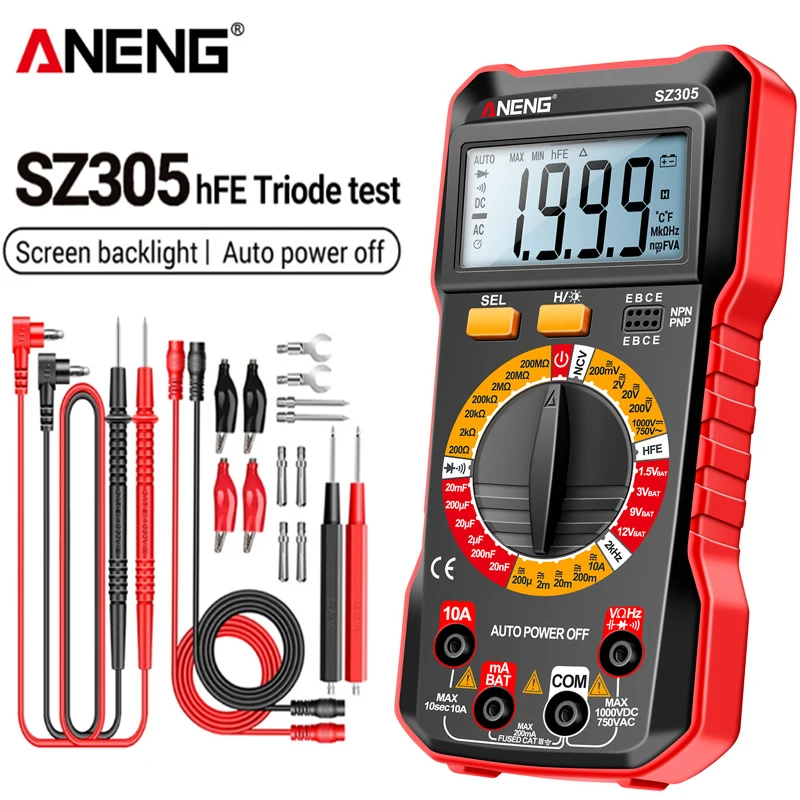

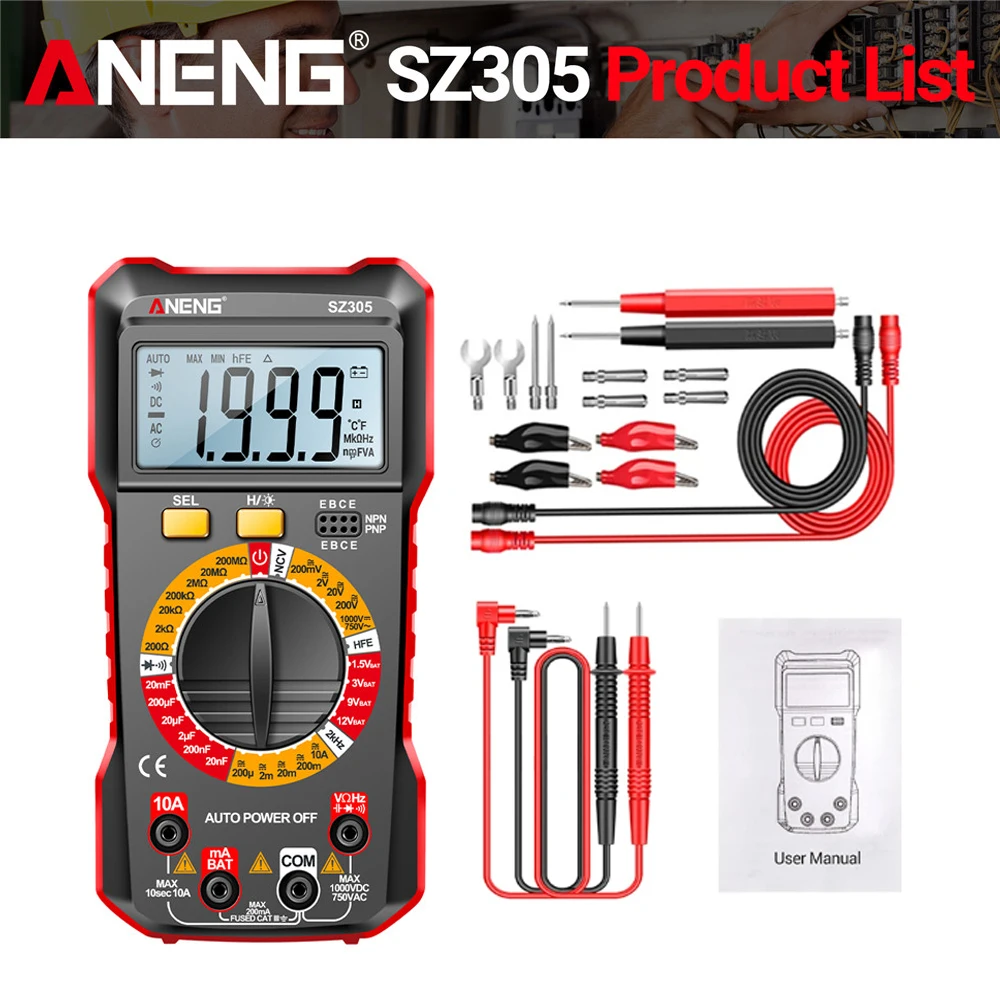

ANENG SZ305 Digital Multimeter Professional AC/DC Voltage Ammeter Capacitor hFE Triode NCV Voltage Induction Electrician Tester Tools

Describe :

SZ305 is a handheld digital multimeter, designed and produced according to international electrical safety standards, used to measure AC/DC voltage, AC/DC current, resistance, capacitance, diode and other functions.

Feature:

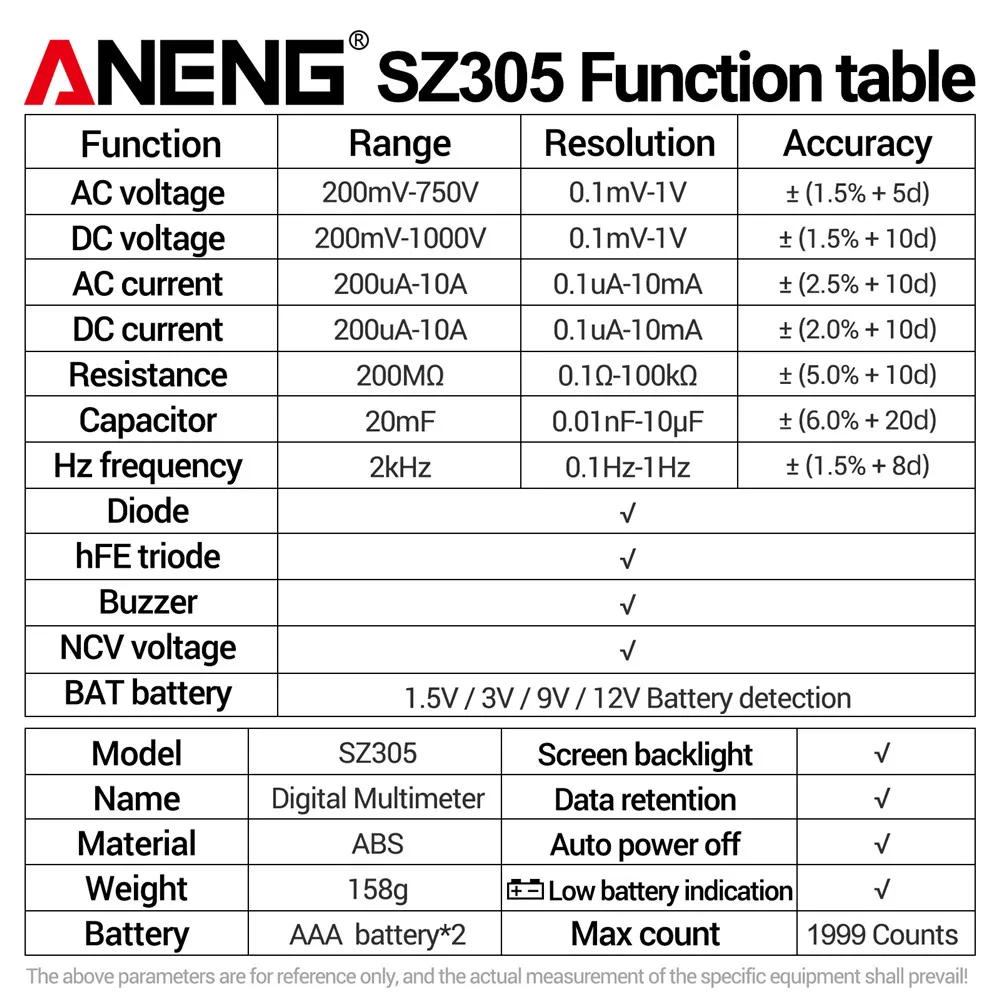

Function	Range	Resolution	Accuracy

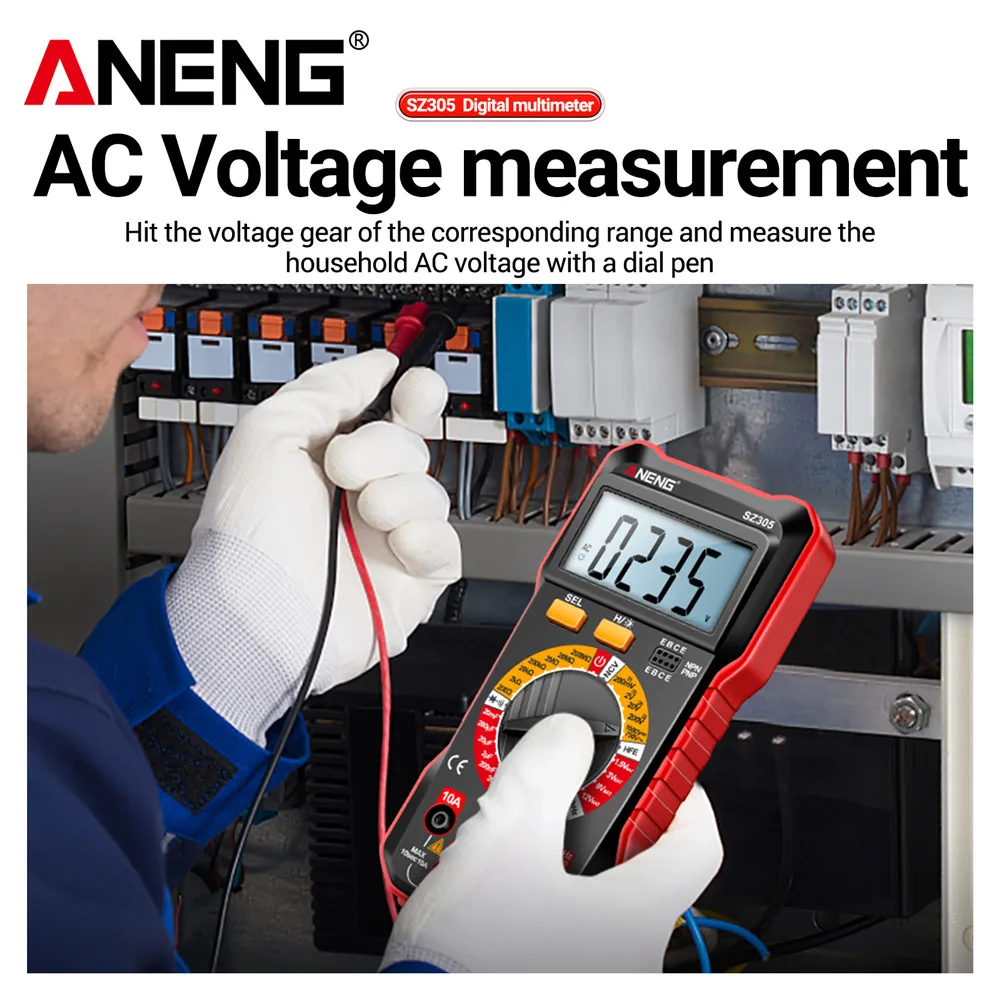

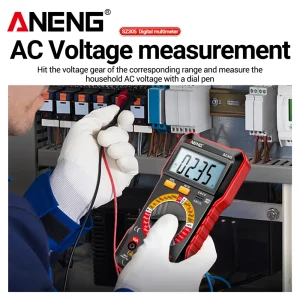

AC voltage	200mV-750V	0.1mV-1V	±(1.5%+5d)
DC voltage	200mV-1000V	0.1mV-1V	±(1.5%+10d)
AC current	200uA-10A	0.1uA-10mA	±(2.5%+10d)
DC current	200uA-10A	0.1uA-10mA	±(2.0%+10d)
Resistance	200MΩ	0.1Ω-100kΩ	±(5.0%+ 10d)
Capacitor	20mF	0.01nF-10uF	±(6.0%+ 20d)
Hz frequency	2kHz	0.1Hz-1Hz	±(1.5%+8d)
Specification	188x91x38 mm	Screen backlight	√
Name	Digital Multimeter	Data retention	√
Material	ABS	Auto power off	√
Weight	158g	Low battery indication	√
Battery	AAA battery*2	Max count	1999 Counts
Diode	√

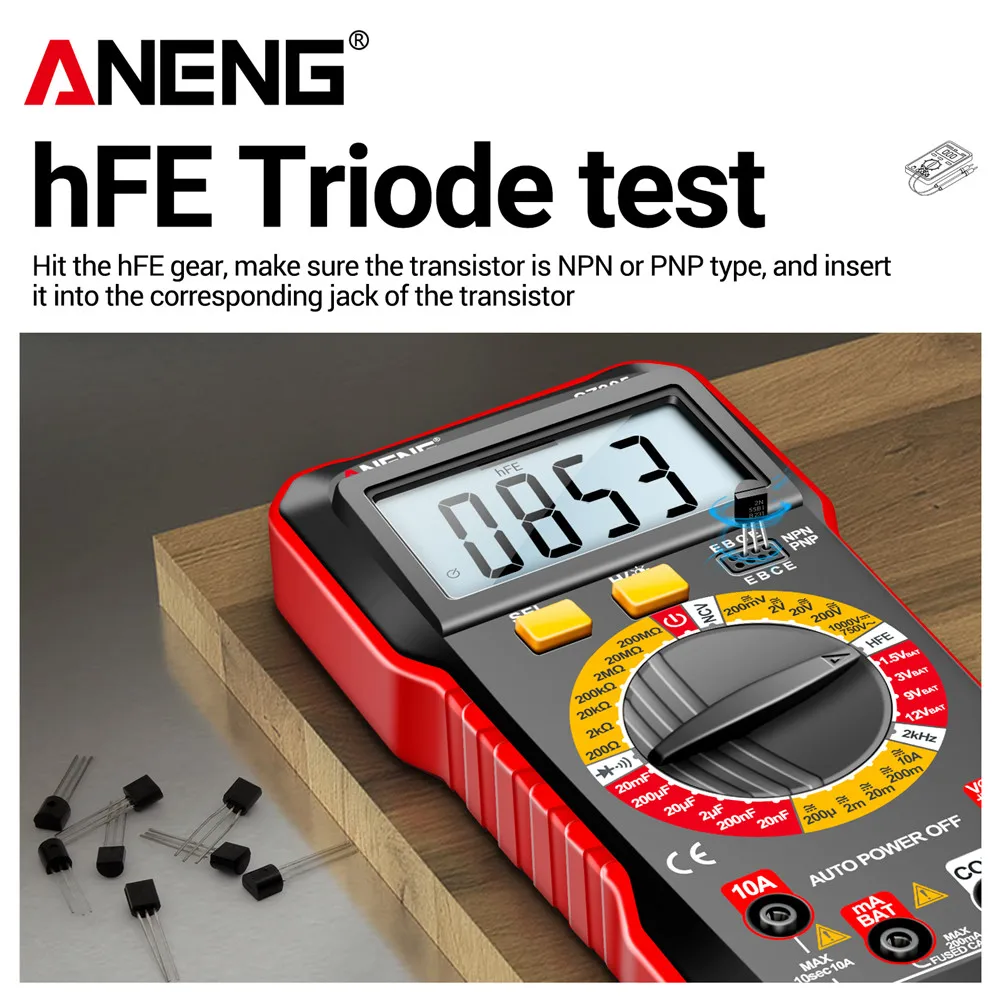

hFE triode	√
Buzzer	√

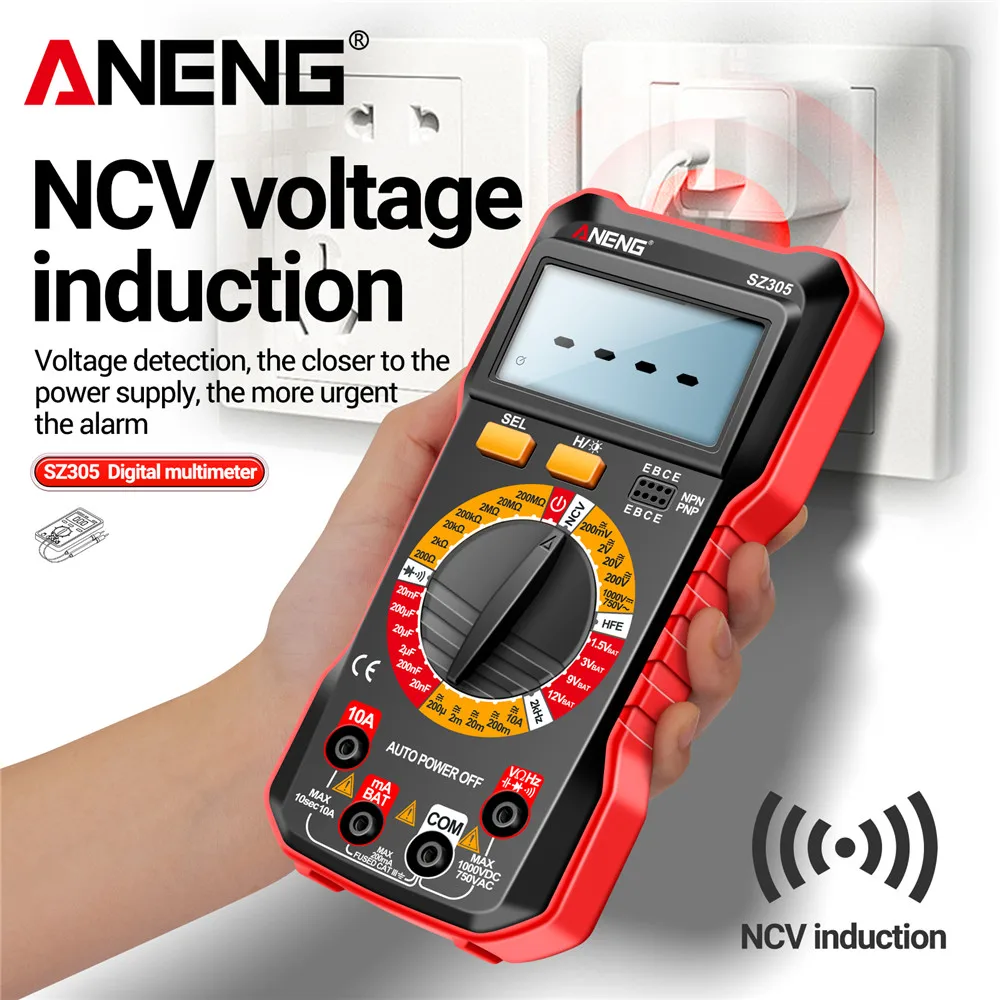

NCV voltage	√

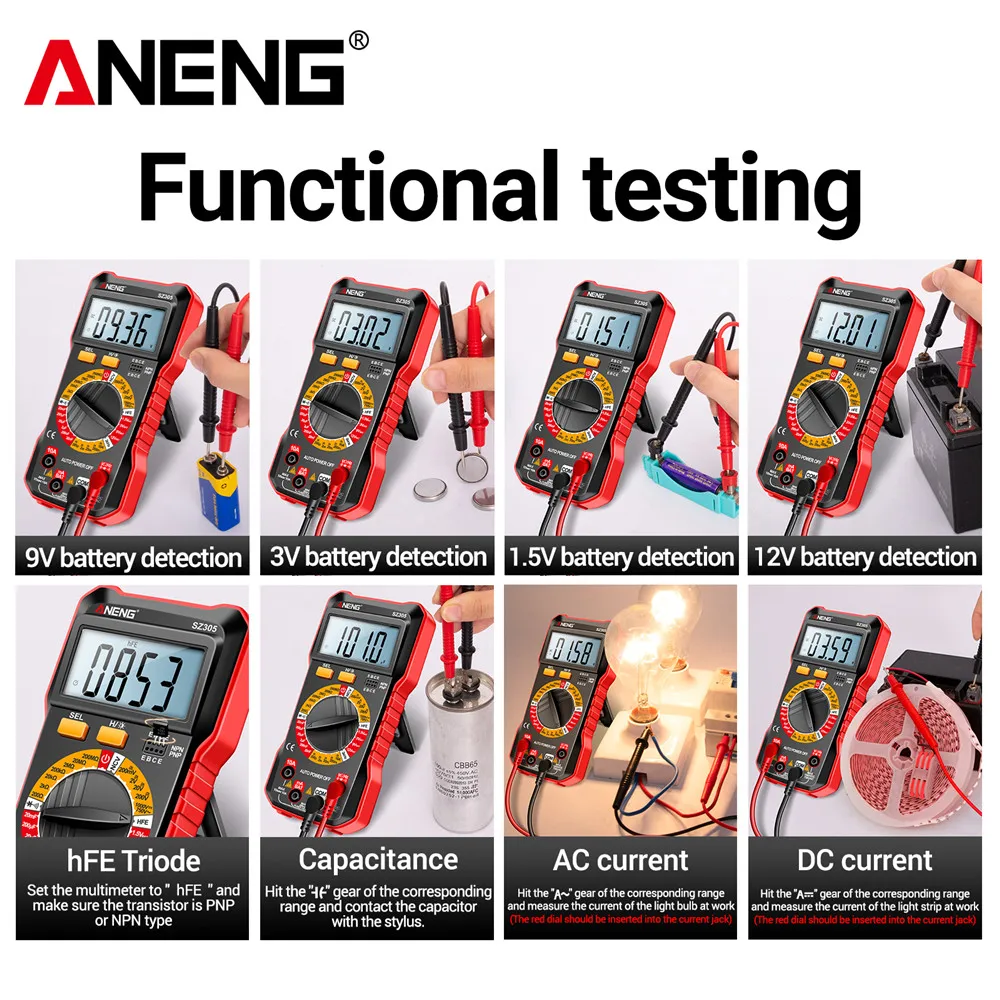

BAT battery	1.5V / 3V / 9V /12V Battery detection
